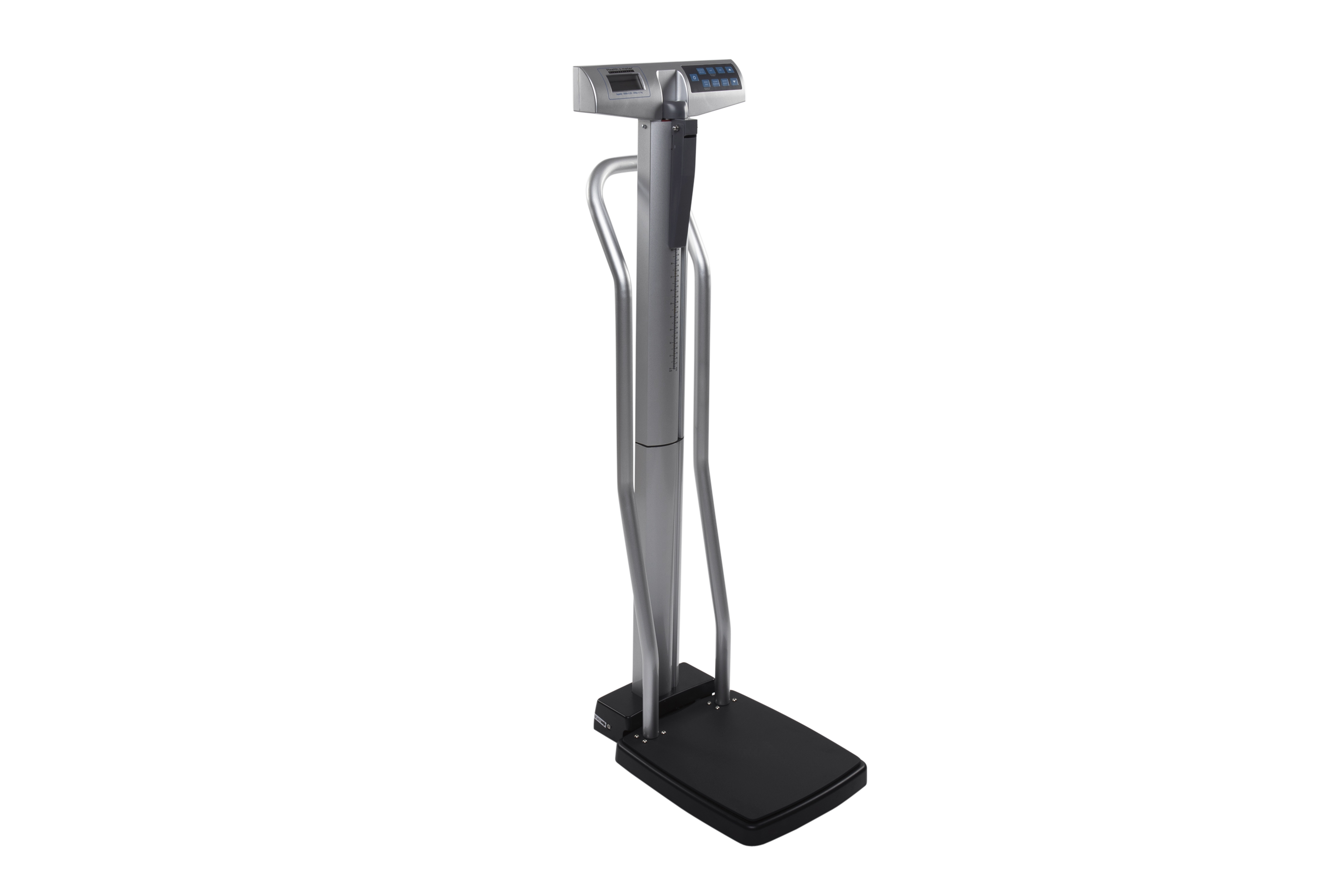

Eye-Level Digital Scale with Handlebars

500KLHB

cMETus
CSA
Features & Benefits

The number-one-selling physician scale in North America, the 500KL primary care scale, provides the optimum quality, reliability, and ease of use. The scale features a built-in height rod in the scale column, a large non-skid platform, handrails for safety and wheels that enable portability. The scale gives providers and patients an eye-level weight indicator for patients up to 550 pounds.

Scale can interface with a computer, EMR software, or other electronic devices via various Health o meter® Professional Connectivity Solutions.

Provide stability without affecting accuracy or weight reading.
Improves Patient Experience – Helps patients with poor or impaired balance maintain stability when standing on the platform.
Accommodates Patients of Any Height – Wrap-around design allows patients of any height to comfortably hold the handlebars.
The handlebar is easy to attach to any new scale using the pre-drilled mounting holes and can also be attached to any existing scale using the easy-to-use drill guides.

Low platform height requires only a minimal step up, offering a patient a more comfortable and stable weighing experience

Option that allows users to permanently lock the scale in either LB or KG to improve safety

Functions

LB/KG conversion

LB/KG lock out

BMI

Zero

Tare

Pre-tare

Hold/Release

Auto Zero

Auto-Off

Reweigh

Recall

Parent/Child weighing function

Everlock® – permanent unit lock

Technical Specifications

550 lb / 250 kg

0.2 lb / 0.1 kg

Via USB, optional Pelstar® wireless technology

1” / 25 mm, LCD display

6 AA batteries included, optional adapter (order# ADPT31)

13 ¾” x 16 ½” x 2 ⅜”
(349 mm x 419 mm x 60 mm)

14 ⅜” x 21 ⅛” x 53 ⅝”
(359 mm x 537 mm x 1362 mm)

31 lb / 15 kg

30”-84 ¼” / 76 cm-214 cm
Graduation: ⅛” / 1 mm

2 wheels, wide 8” wheelbase for ease of movement

2-year limited manufacturer warranty

Options

Digital eye-level platform scale with handlebars included, pounds, and kilograms

ScaleSurance® 2 year extended warranty for 500 series (not available in all countries)

ScaleSurance®

Downloads & Resources

The number-one-selling physician scale in North America, the 500KL primary care scale, provides the optimum quality, reliability, and ease of use. The scale features a built-in height rod in the scale column, a large non-skid platform, handrails for safety and wheels that enable portability. The scale gives providers and patients an eye-level weight indicator for patients up to 550 pounds.

Scale can interface with a computer, EMR software, or other electronic devices via various Health o meter® Professional Connectivity Solutions.

Provide stability without affecting accuracy or weight reading.
Improves Patient Experience – Helps patients with poor or impaired balance maintain stability when standing on the platform.
Accommodates Patients of Any Height – Wrap-around design allows patients of any height to comfortably hold the handlebars.
The handlebar is easy to attach to any new scale using the pre-drilled mounting holes and can also be attached to any existing scale using the easy-to-use drill guides.

Low platform height requires only a minimal step up, offering a patient a more comfortable and stable weighing experience

Option that allows users to permanently lock the scale in either LB or KG to improve safety

LB/KG conversion

LB/KG lock out

BMI

Zero

Tare

Pre-tare

Hold/Release

Auto Zero

Auto-Off

Reweigh

Recall

Parent/Child weighing function

Everlock® – permanent unit lock

550 lb / 250 kg

0.2 lb / 0.1 kg

Via USB, optional Pelstar® wireless technology

1” / 25 mm, LCD display

6 AA batteries included, optional adapter (order# ADPT31)

13 ¾” x 16 ½” x 2 ⅜”
(349 mm x 419 mm x 60 mm)

14 ⅜” x 21 ⅛” x 53 ⅝”
(359 mm x 537 mm x 1362 mm)

31 lb / 15 kg

30”-84 ¼” / 76 cm-214 cm
Graduation: ⅛” / 1 mm

2 wheels, wide 8” wheelbase for ease of movement

2-year limited manufacturer warranty
