Digital Wheelchair and Stand-On Scale with Dual Ramps and Extra- Large Platform, ADA Compliant, LB & KG*
Digital Wheelchair and Stand-On Scale with Dual Ramps and Extra-Large Platform, ADA Compliant, KG only*

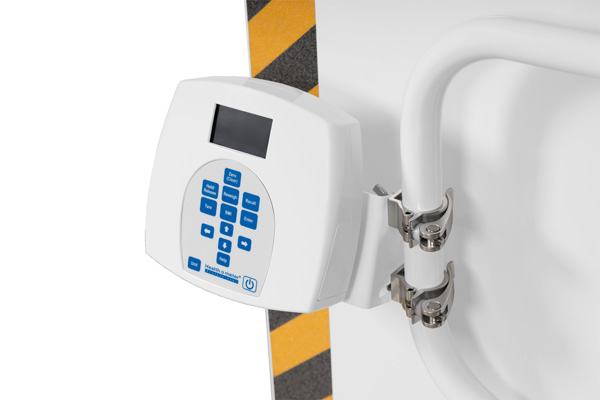

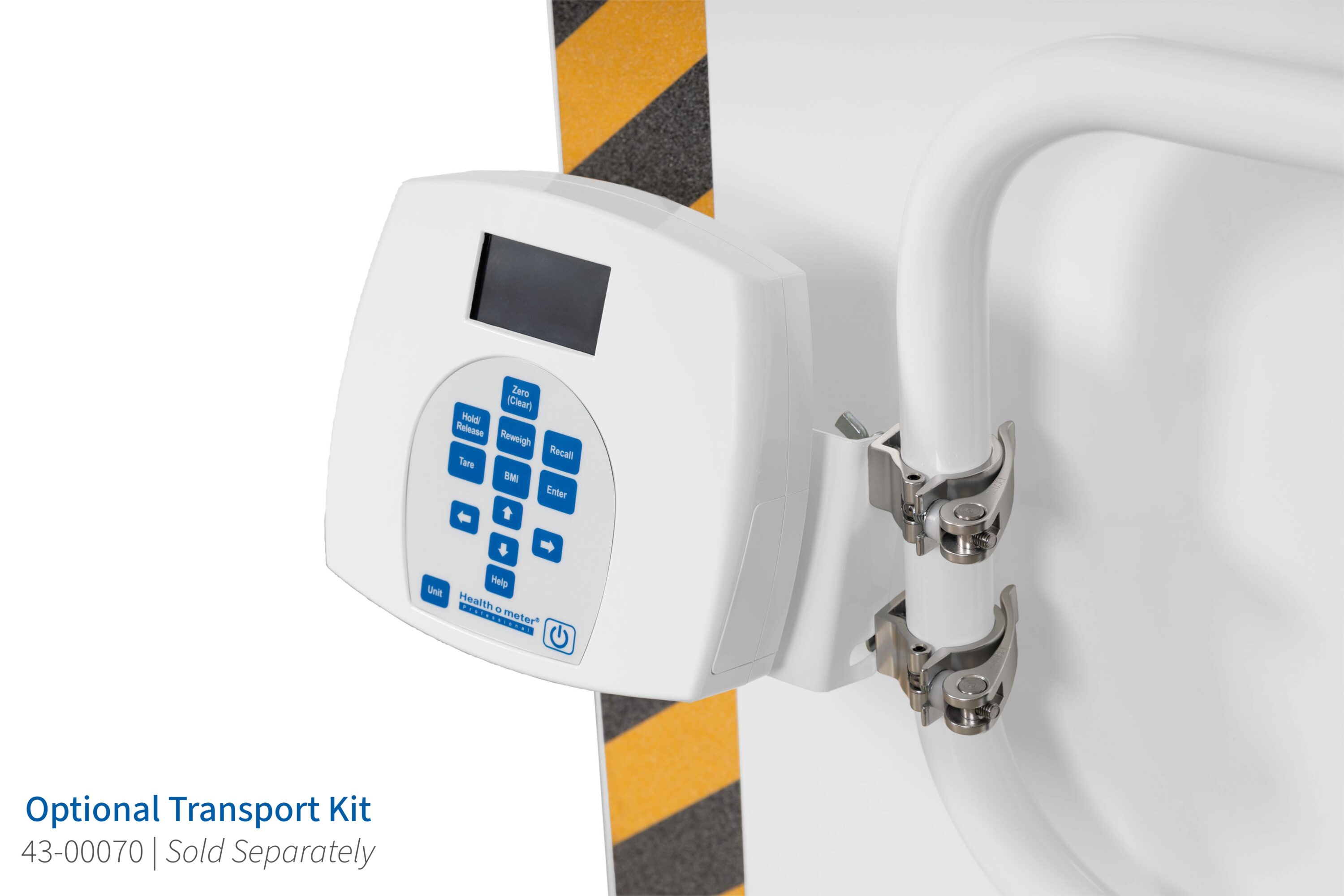

Optional Transport Kit for 2622 Series Display Head

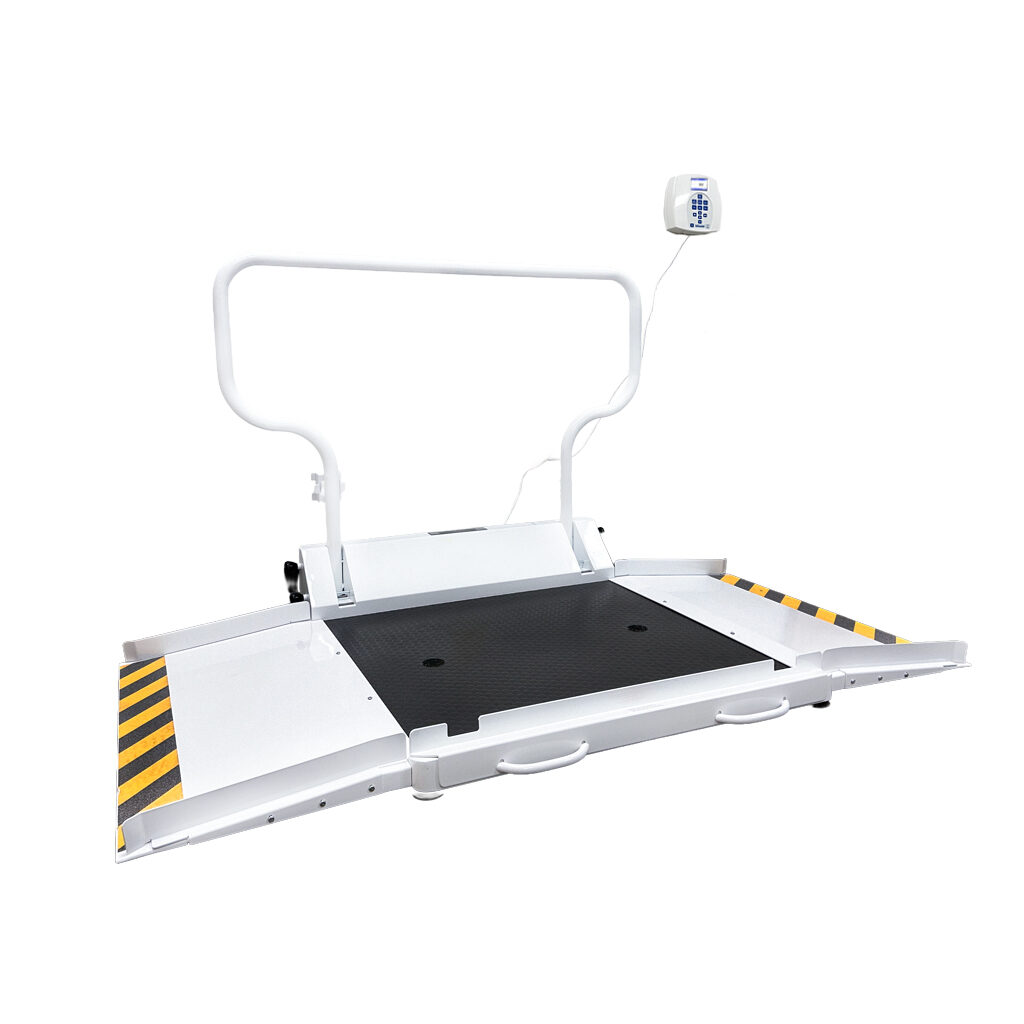

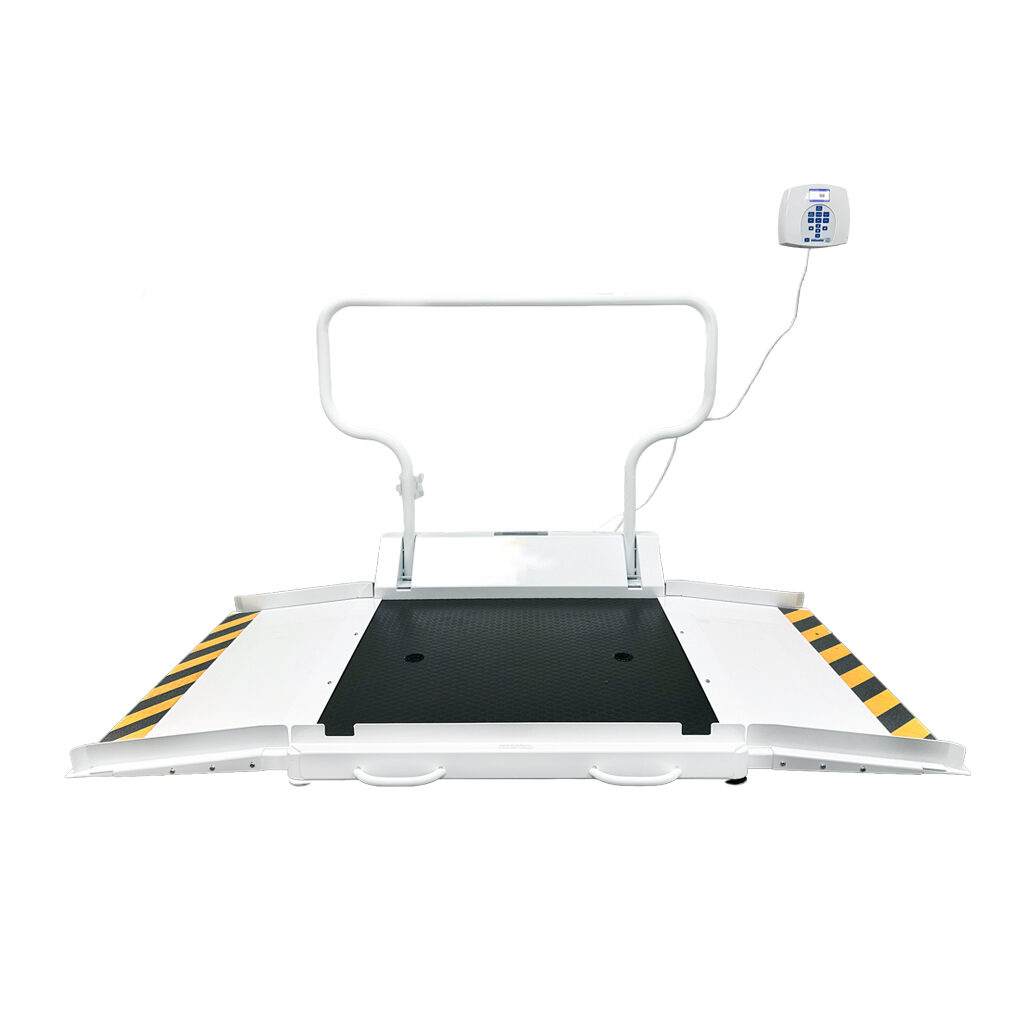

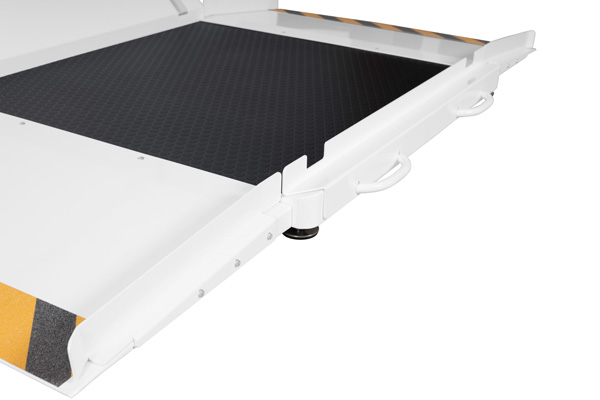

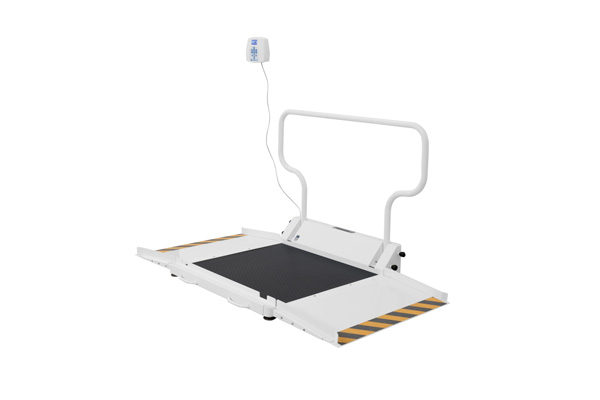

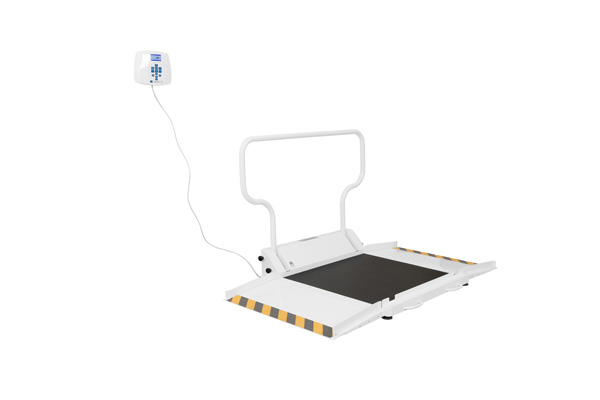

The all-digital 2622KL is engineered with enhanced safety features to ensure a comfortable weighing experience for patients standing on the platform or for those who use wheelchairs. Certified for Americans with Disabilities Act (ADA) compliance, the dual ramps adhere to a 1:8 slope ratio and the handrail height is within the required 34”-38” range. The ramps and extra-large 32” x 40” platform feature a 2” edge protection to prevent roll-offs, and antislip caution tape on the ramps provide enhanced safety. The platform folds for storage, and
built-in casters are included for added convenience and mobility. The scale has a weight capacity of up to 1,000 pounds (454 kilograms). As an all-in-one scale, the 2622KL meets the U.S. Access Board Standards for both stand-on and wheelchair scales, and is ideal for doctor’s offices, hospitals, clinics, and acute or long-term care facilities. Additional features include an antimicrobial keypad, a wall-mounted display head, and a large non-skid platform.
Reviewed for
ADA compliance and
Platinum certified by Corada
The 2622KL is designed to meet the US Access Board’s Standards. Medical facilities operated by state and local governments, also known as public entities, must comply with the MDE Standards for Accessible Medical Diagnostic Equipment, which are enforced by the Department of Justice.

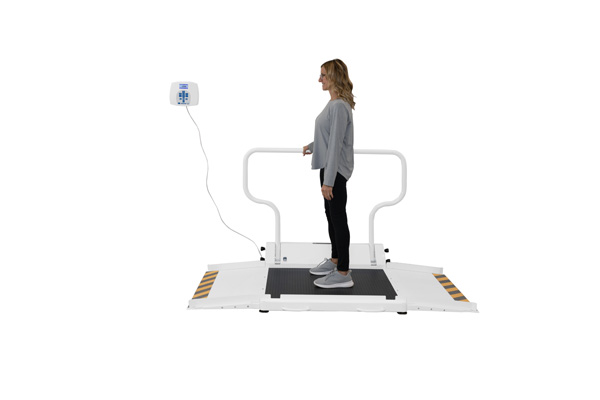

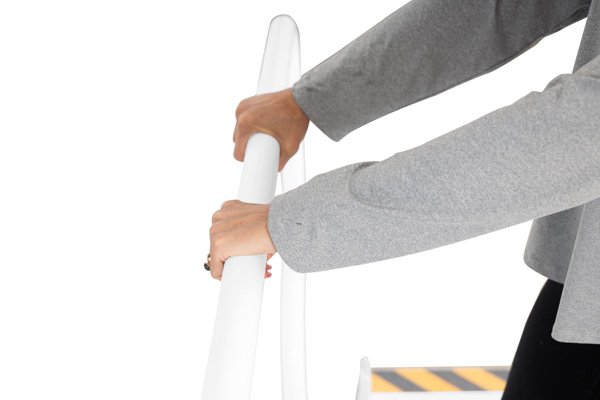

An extended handrail length provides stability and support for ambulatory patients.
32” x 40” low-profile platform accommodates both wheelchair and stand-on patients comfortably.
High-contrast color display with functions like BMI, tare, hold/release, recall, and reweigh.

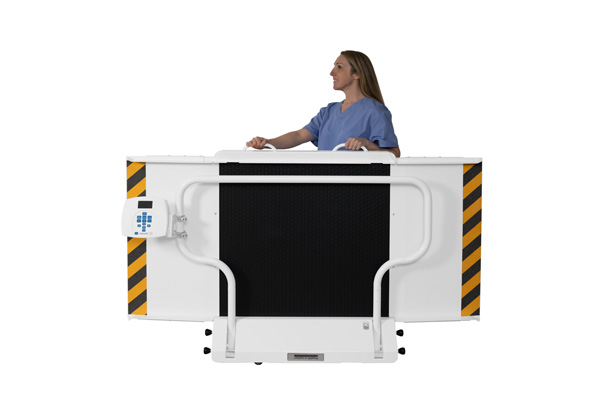

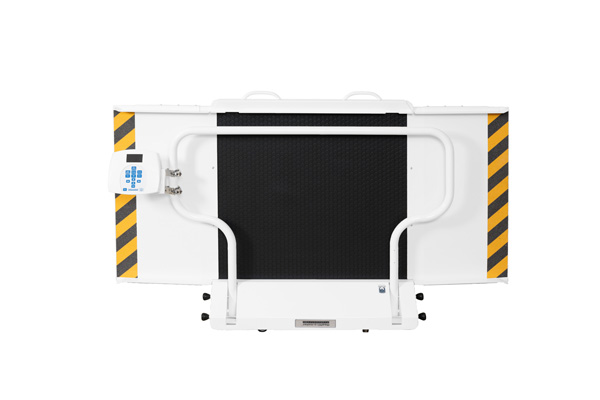

Foldable platform with built-in wheels/casters for easy storage and transport.
Helps support hygiene in clinical environments.
One all-in-one scale replaces multiple devices and folds for storage.

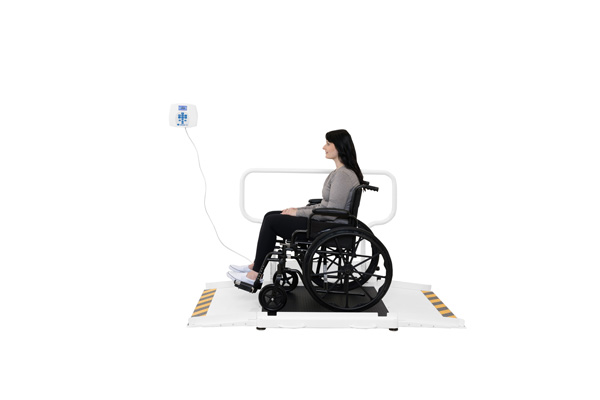

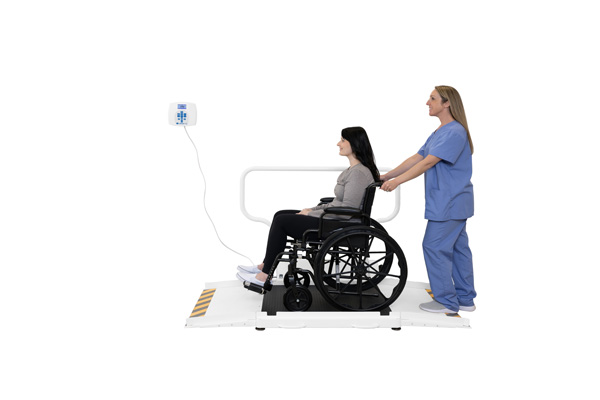

Accommodates wheelchair users and ambulatory patients in one device—no transfers needed.
The display can be mounted on either side.
1000 lb / 454 kg
0.2 lb / 0.1 kg
Via USB, optional Pelstar® wireless technology
Digit Size: 3/8” / 10 mm
Screen Size: 2 ¾” x 1 ½” High-Contrast
Color TFT-LCD Screen
100-240V adapter (ADPT30)
included, 6 D batteries not included
40” x 32 ¼” x 1 ⅞”
(1016 mm x 819 mm x 48 mm)
32 1/4” x 16”
(819 mm x 406 mm)
40” x ⅛” x 2”
(1016 mm x 3 mm x 51 mm)
71 ½” x 45 ⅛” x 39 ½”
(1816 mm x 1147 mm x 1003 mm)
71 1/2” x 9 ½” x 44”
(1816 mm x 241 mm x 1118 mm)
37.5”/ 952 mm
126 lb / 57 kg
4 wheels (2 casters) for ease of movement
2-year limited manufacturer warranty
