Digital Platform Scale with Extra Wide Handrails and Digital Height Rod

Reviewed for ADA compliance and Platinum certified by Corada

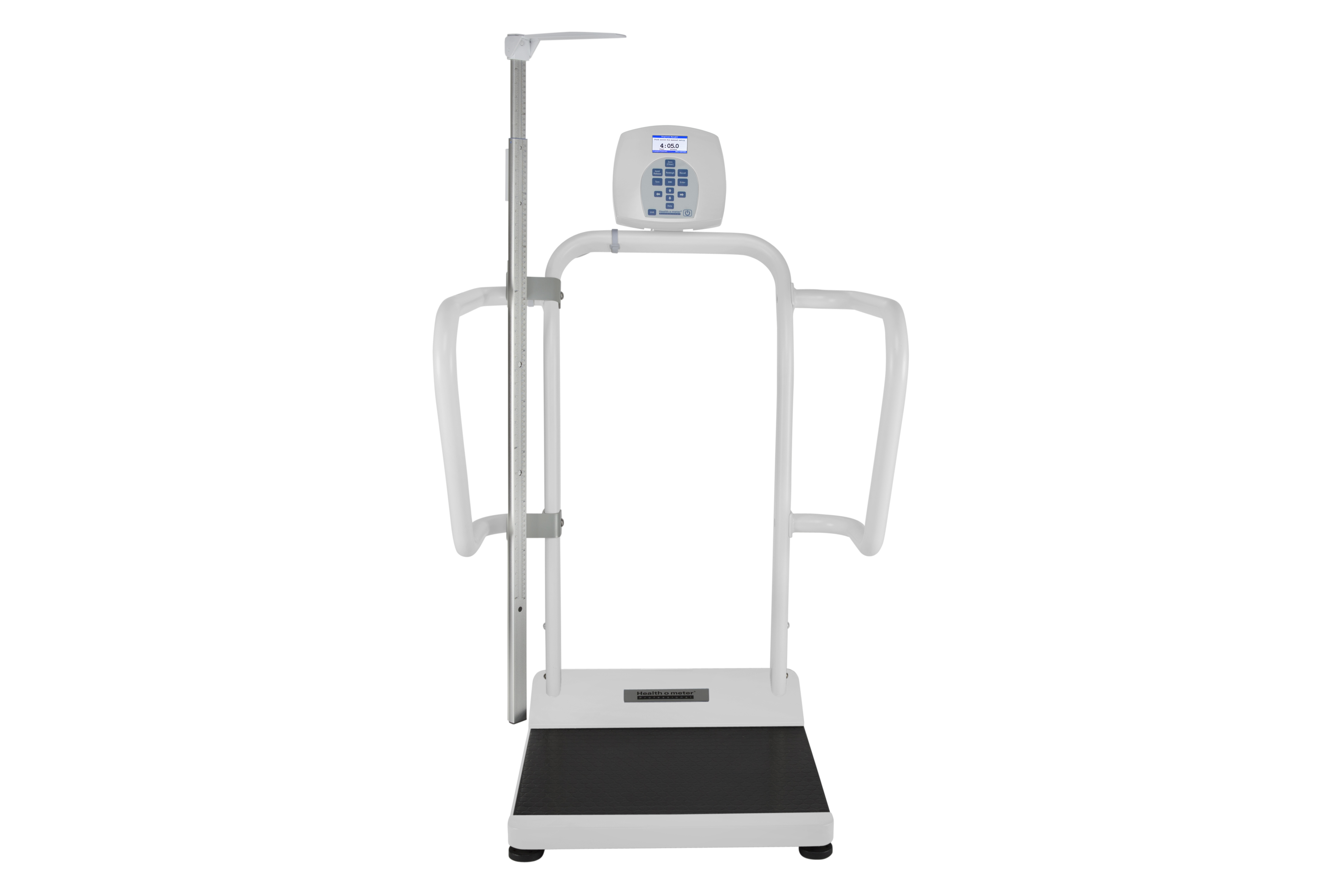

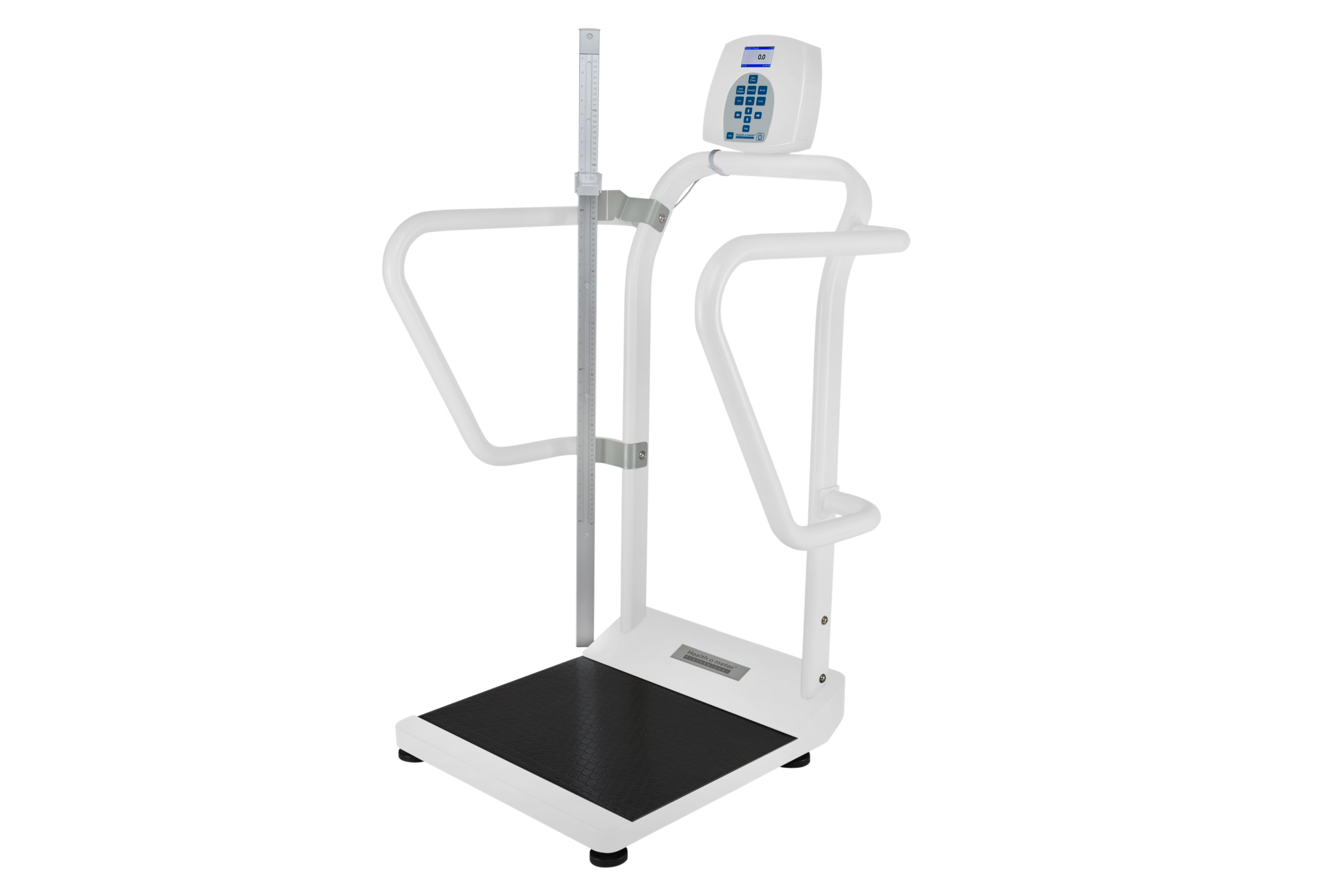

The Certified ADA Compliant 1100KL-EHR combines the industry-leading bariatric scale that supports up to 1000 pounds and provides the optimum quality, reliability, and ease of use with a state-of-the-art digital height rod. The market-leading height rod provides the most accurate height measurement in its class, with a graduation/resolution of 1mm/0.1” and a full measuring range of 11 ¾” – 79 ½” / 30cm – 202cm. The extra-wide “live” handrails on both sides of the platform allow the patient to hold on for stability while the scale accurately
calculates weight and height.

Designed to Meet the US Access Boards Standards: Medical facilities operated by state and local governments, also known as public entities, must comply with the MDE Standards for Accessible Medical Diagnostic Equipment, which is enforced by the Department of Justice.

• Slip-resistant platform
• Handrail supports on both sides of platform
• 34” – 38” max. handrail height from platform

Antimicrobial keypad
EMR/vital signs monitor integration-ready
Extra-wide “live” handrails & low profile platform
High contrast color display with 180° swivel
Everlock® (patent pending) – option that allows users to permanently lock the scale in either LB or KG to improve safety

Broad height measuring range of 11 ¾” – 79 ½” / 30cm – 202cm provides readings for a wide range of patients
Digital Measuring Range: 3ft 11.2” – 6ft 7.5” / 120 cm – 202 cm
Industry-leading accuracy on the digital height rod with a graduation/resolution of 1mm / 0.1”
Built-in reset feature’s proprietary technology eliminates mechanical sensors, reducing failures, increasing accuracy and reliability

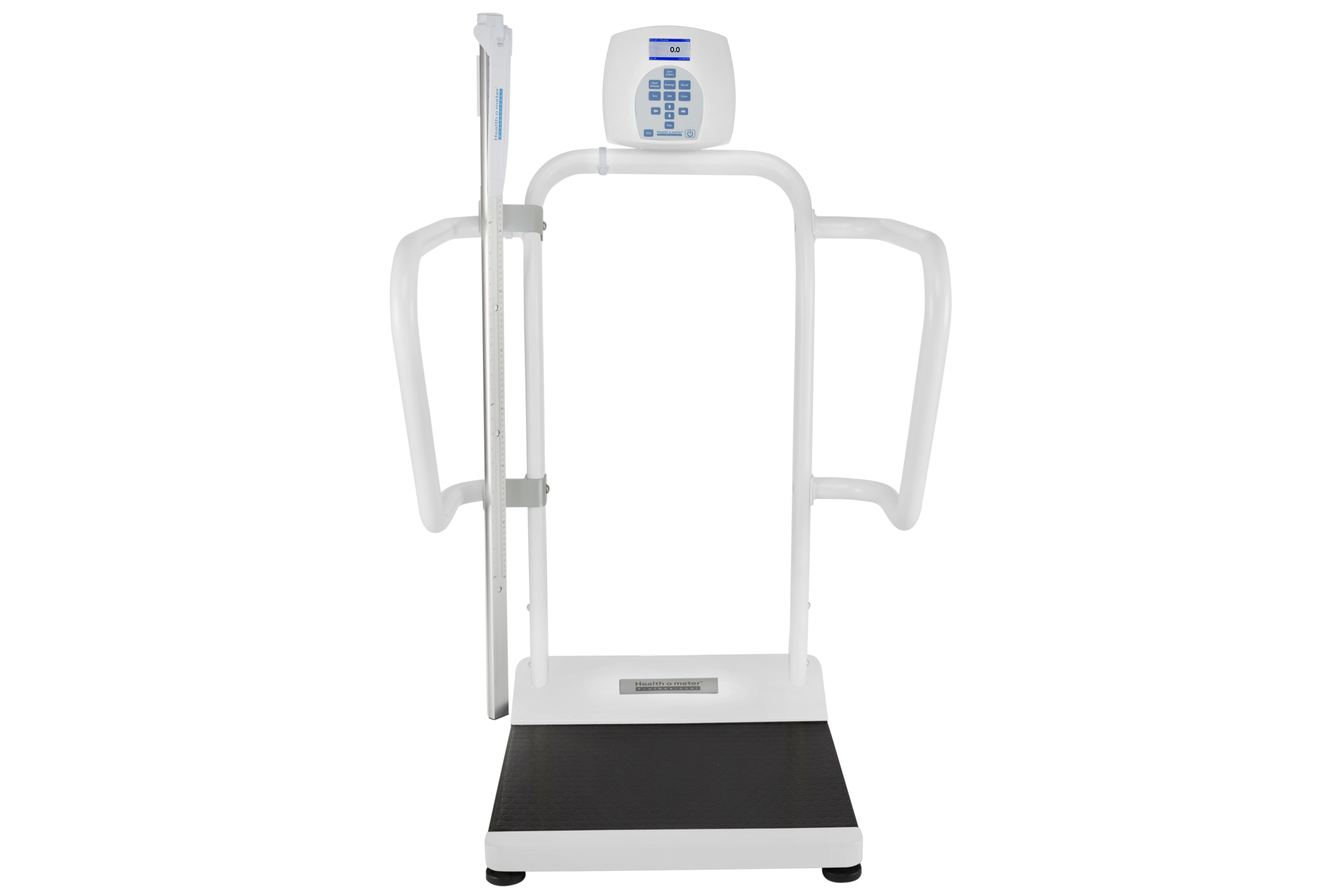

Headpiece folds to limit height rod profile, provides safety to patients and caregivers

LB/KG conversion
LB/KG lock out
BMI
Zero
Tare
Pre-tare
Hold/release
Reweigh
Recall
Auto zero
Auto off
Time/date
Variable auto off time
Audible/mute sound option
Parent/child weighing function
Everlock® – permanent weight lock

1000 lb / 454 kg

0.2 lb / 0.1 kg

Via USB, optional Pelstar®wireless technology

1 ½” / 38 mm High-Contrast Color TFT-LCD Screen

100-240V adapter (ADPT30) included, 6 D batteries not included

3ft 11.2” – 6ft 7.5” / 120 cm - 202 cm, Resolution: 1 mm / 0.1”

11 ¾” – 79 ½” / 30cm – 202cm, Graduation: 1mm / 1/16 inch

22” x 15 ¾” x 2 ½”
(559 mm x 400 mm x 64 mm)

(height rod extended)
31 ¾” x 33 ½” x 82 ½”
(806 mm x 851 mm x 2096 mm

(height rod in home position)
31 ¾” x 33 ½” x 50 ¼”
(806 mm x 851 mm x 1276 mm)

58 lb / 26 kg

2 wheels for ease of movement

2-year limited manufacturer warranty
