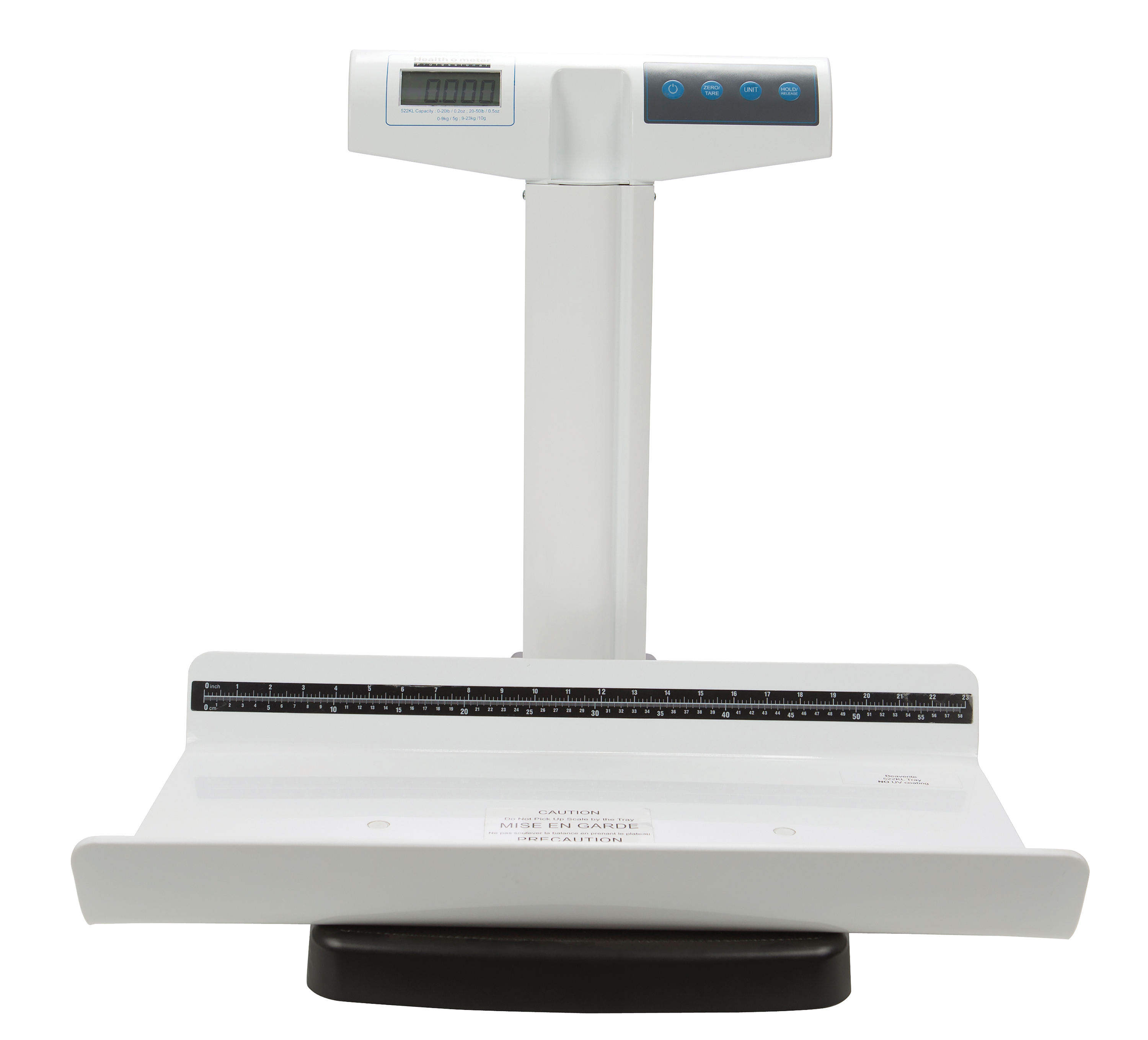

Digital Pediatric Tray Scale

522KL

cMETus
Features & Benefits

This easy-to-use scale is perfect for busy pediatric offices or clinics where infants are seen regularly. The tray has a convenient measuring tape to determine the baby’s length during the weighing session.

Via optional Pelstar® wireless technology

Easy to read measuring tape allows users to measure both weight and height simultaneously

Scale has the ability to weigh accurately despite movement of the subject on the scale

Display head is positioned 17” above the scale base to allow for an unobstructed view of the weight measurement

Functions

LB/KG conversion

LB/KG lockout

Zero

Tare

Hold/Release

Auto Zero

Auto-Off

Variable auto-off Time

Audible/mute sound option

Enabling unit view with unit of measure Locked

Auto-weight hold for 30 to 60 seconds

Auto Zero on Power Up

Everlock®

Reweigh

Pre-Tare

Recall

Technical Specifications

50 lb / 23 kg

0 - 20 lb 0.2 oz / 20 - 50 lb / 0.5 oz; 0 - 9 kg / 5g; 9 - 23 kg / 10 g

Via optional Pelstar® wireless technology

1” / 25 mm, LCD display

24 ⅛” x 14 ½” x 2 ⅝”
(613 mm x 368 mm x 67 mm)

24 ⅛” x 21” x 23 ⅛”
(613 mm x 533 mm x 587 mm)

20 lb / 9 kg

0” - 23” / 0 cm - 58 cm

6 AA batteries included, optional adapter (order# ADPT31)

2-year limited manufacturer warranty

Options

Digital pediatric tray scale

Digital pediatric tray scale, kilograms only

ScaleSurance® 2 year extended warranty for 522 series (not available in all countries)

ScaleSurance®

Downloads & Resources
