Digital Wheelchair Scale with Dual Ramps and Extra-Large Platform, ADA Compliant, LB & KG*
Digital Wheelchair Scale with Dual Ramps and Extra-Large Platform, ADA Compliant, KG only*
ScaleSurance® 2 year extended warranty for 2620 series*
Adapter included, item # for replacement or spare
Plug adapters for use outside North America
Wireless thermal printer kit
Reviewed for ADA Compliance and Platinum Certified by Corada.

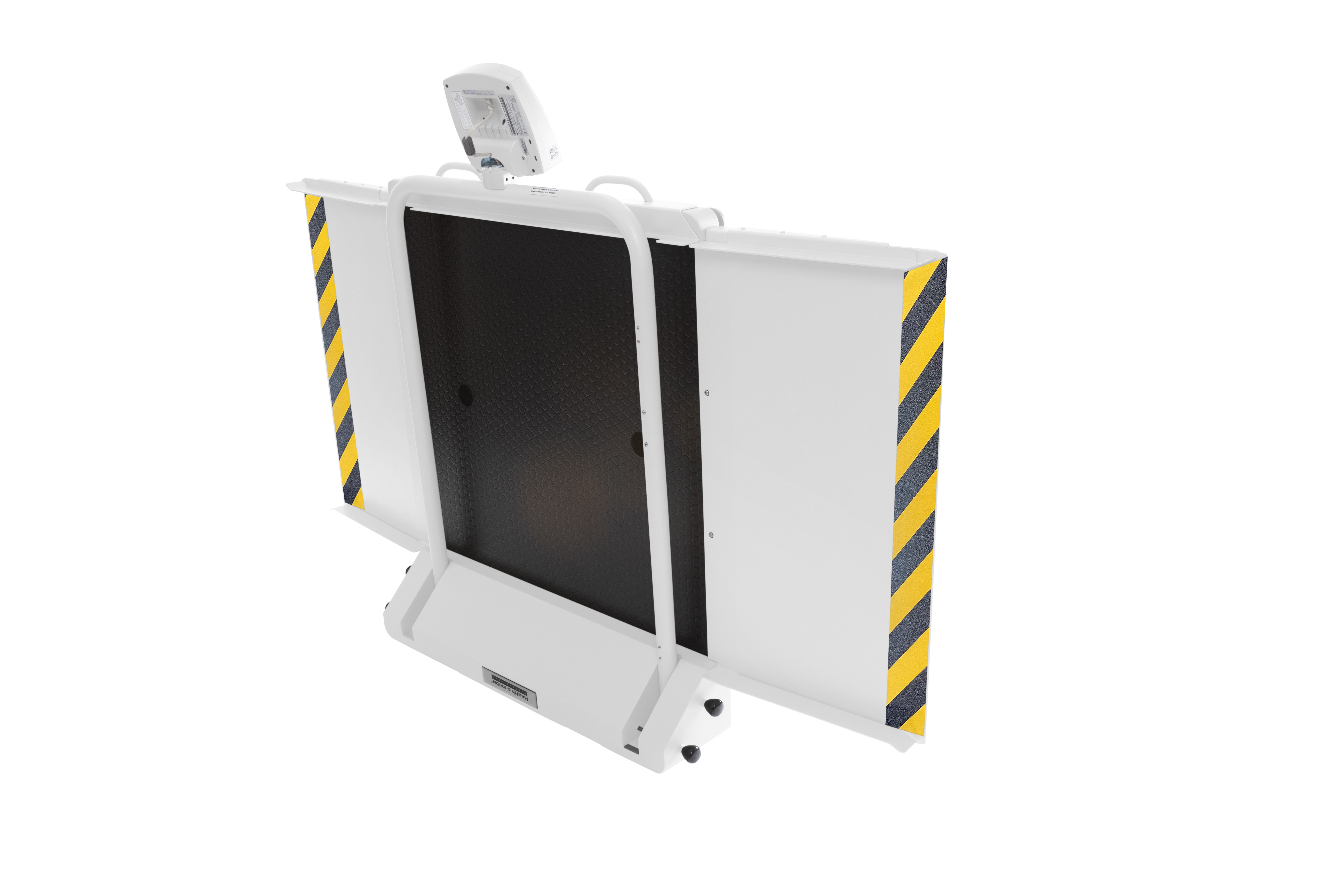

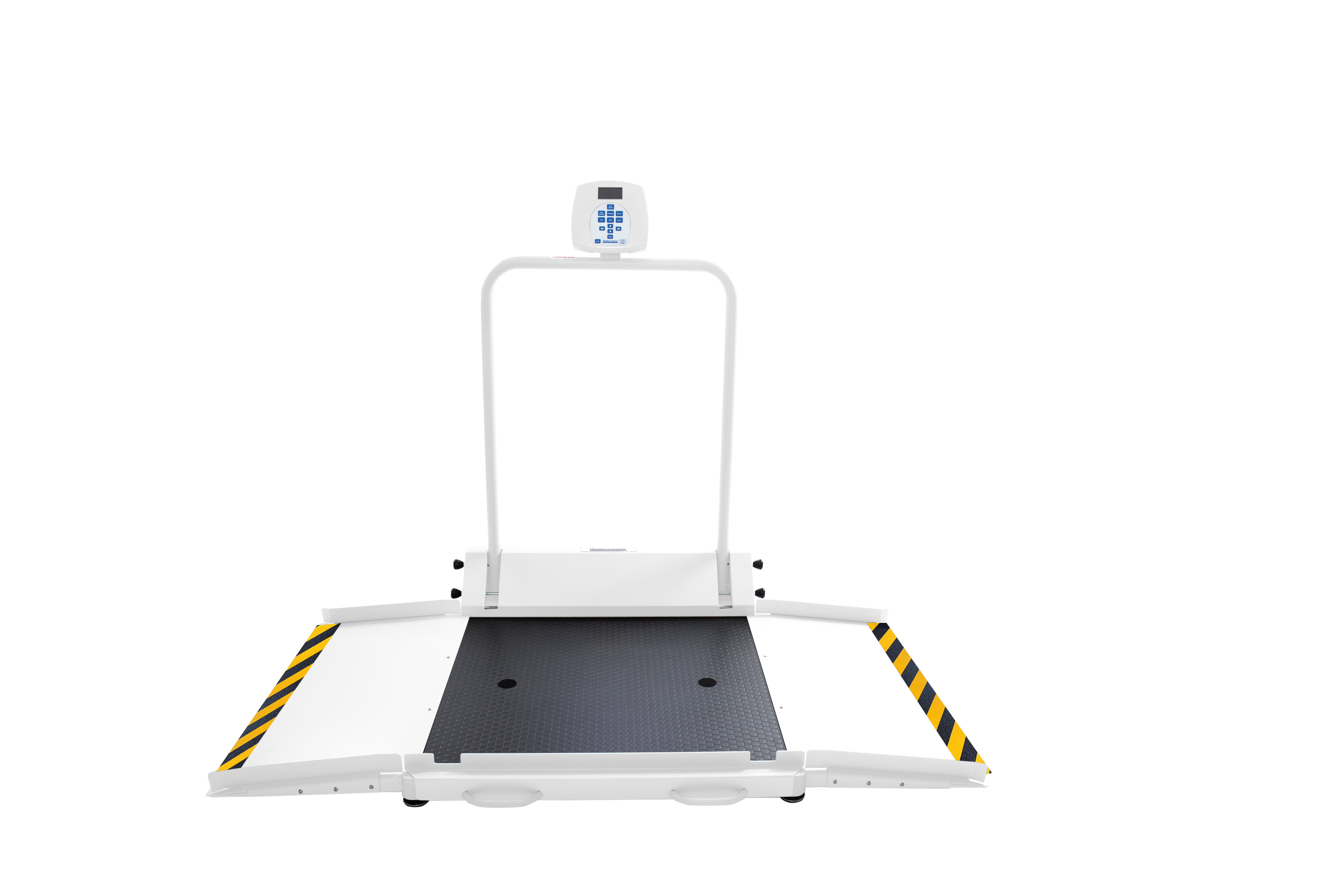

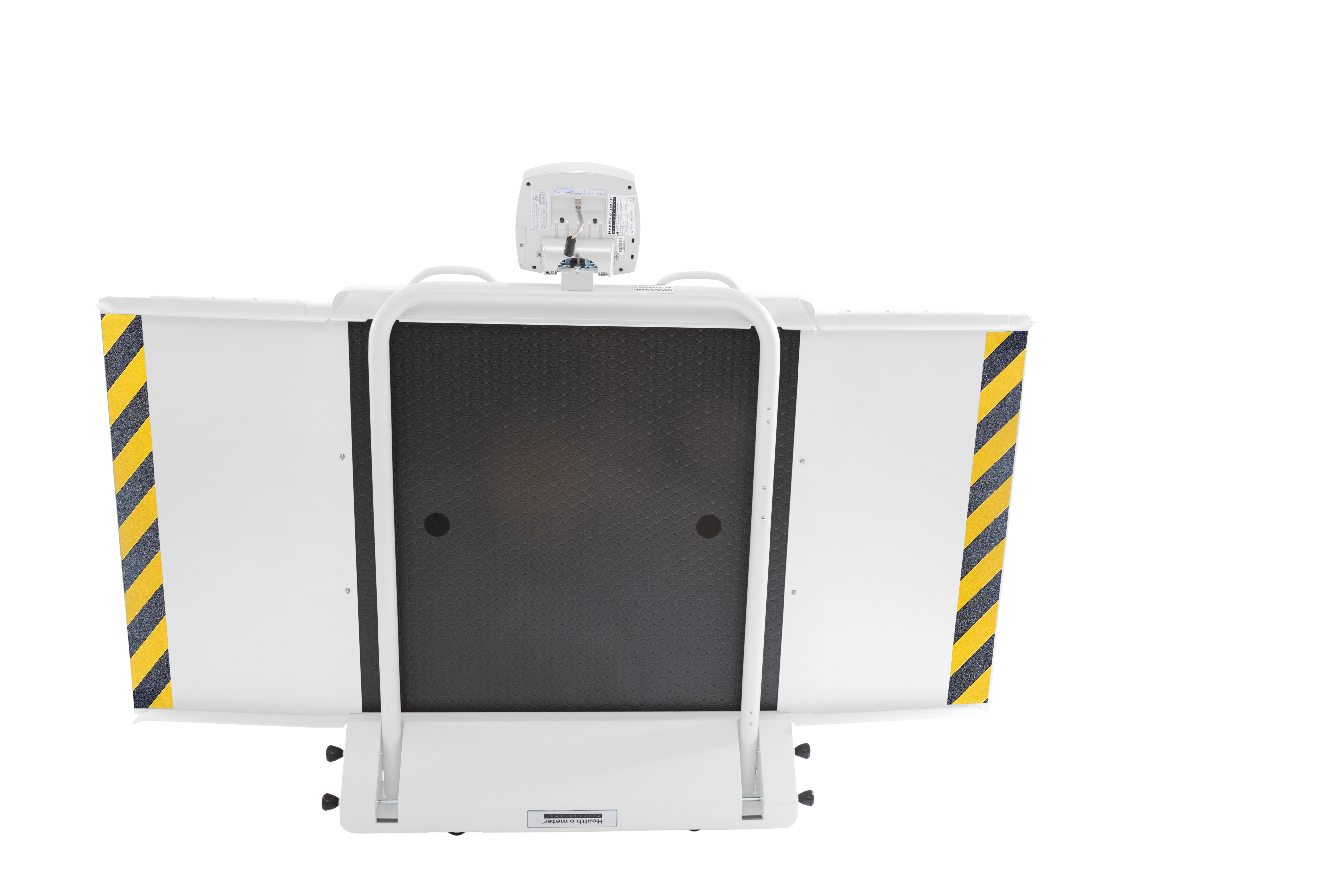

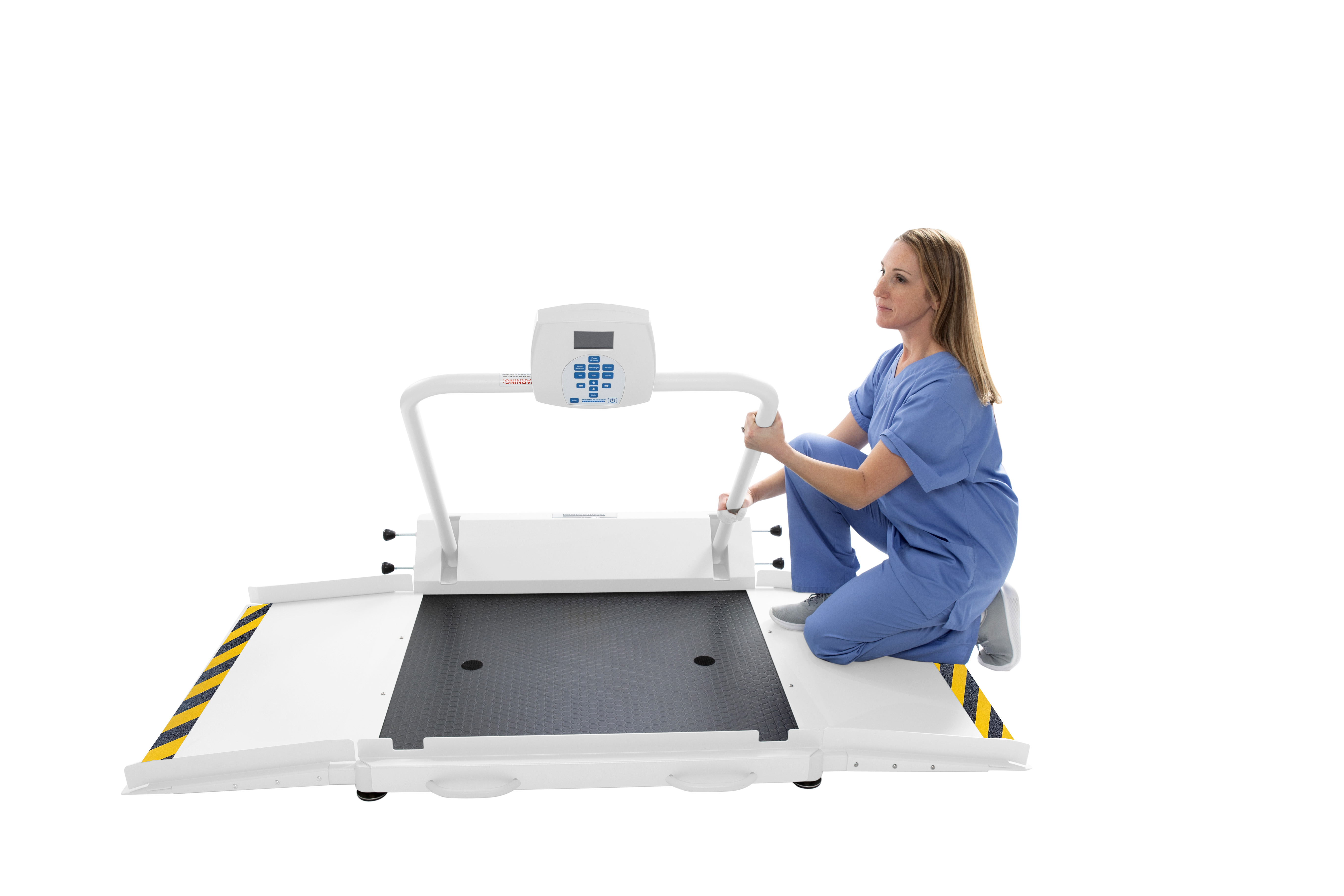

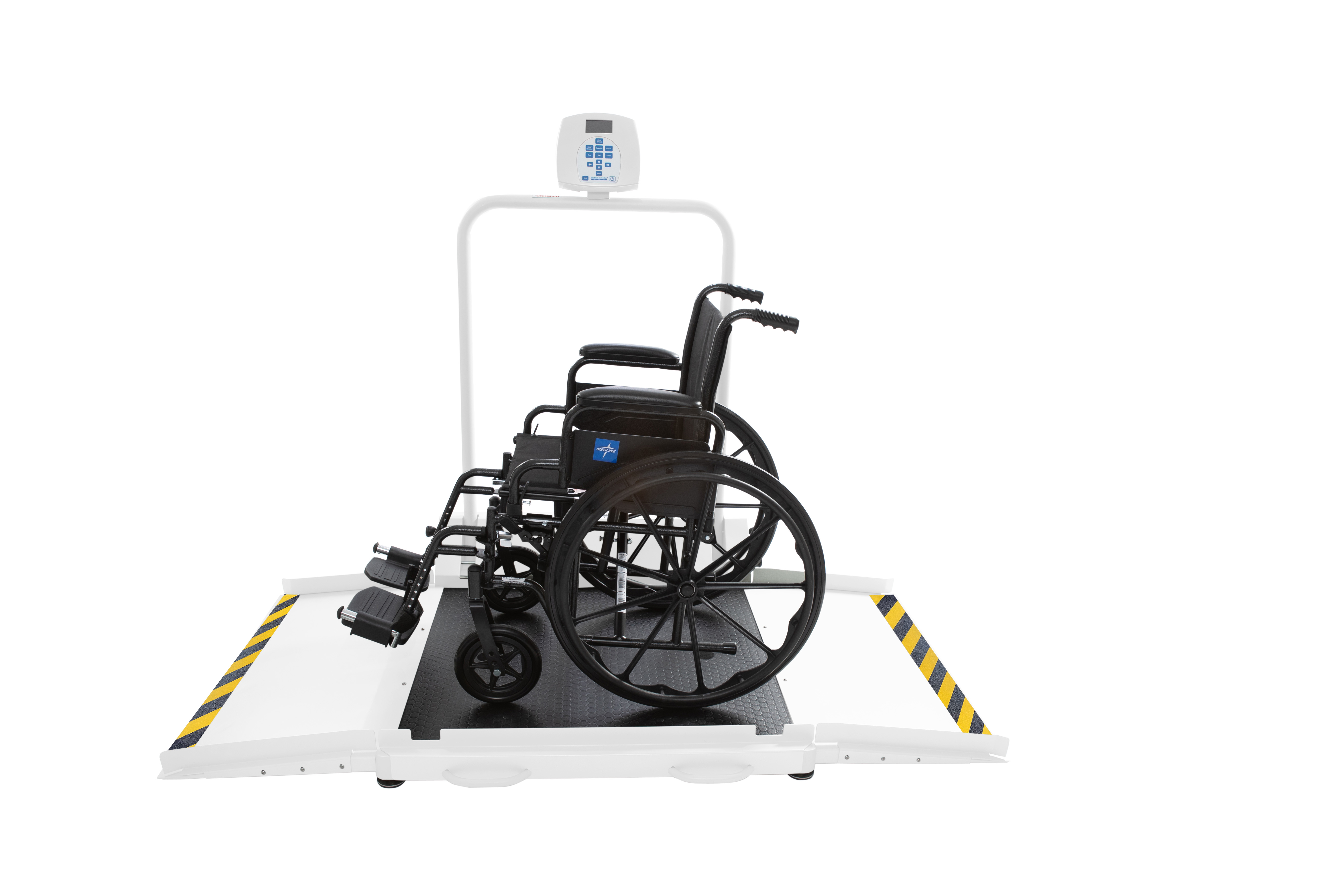

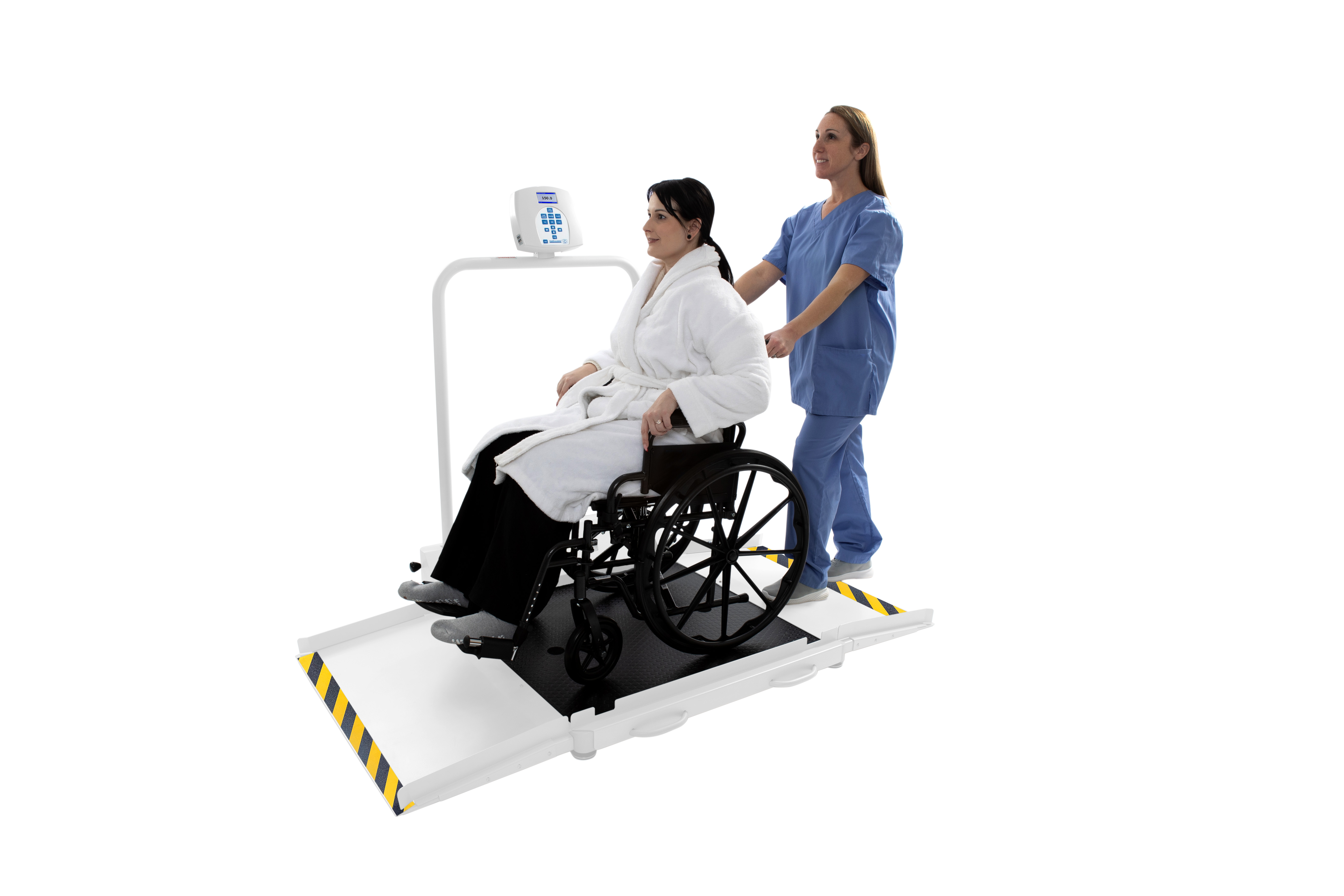

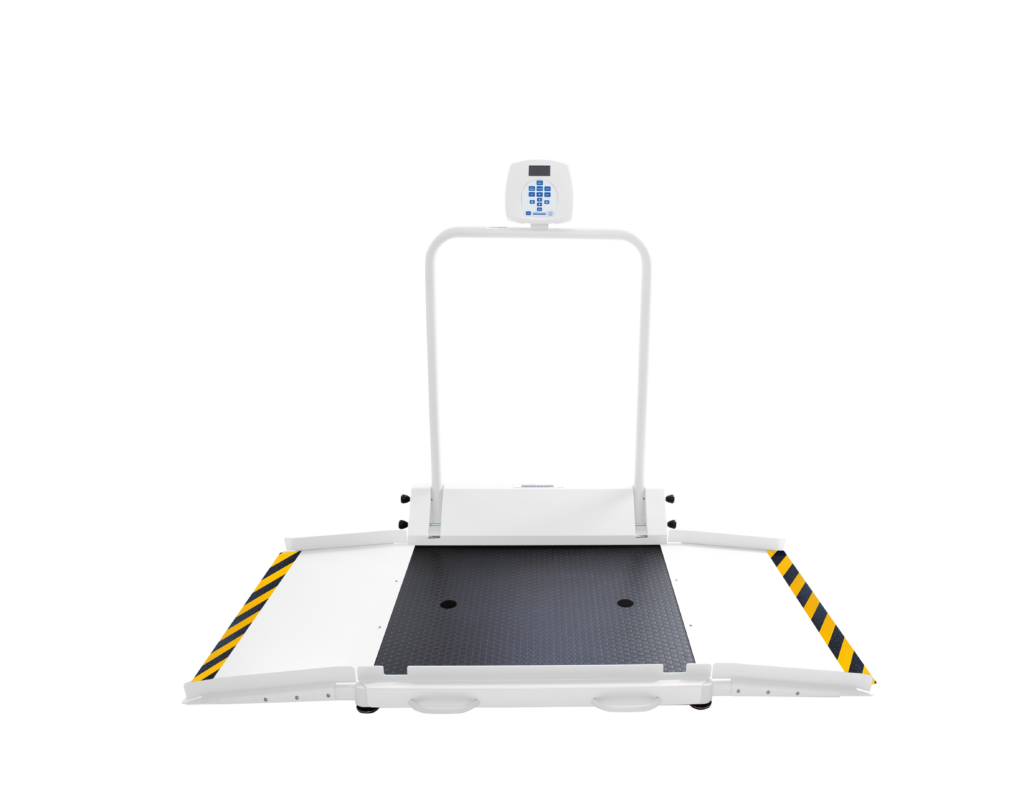

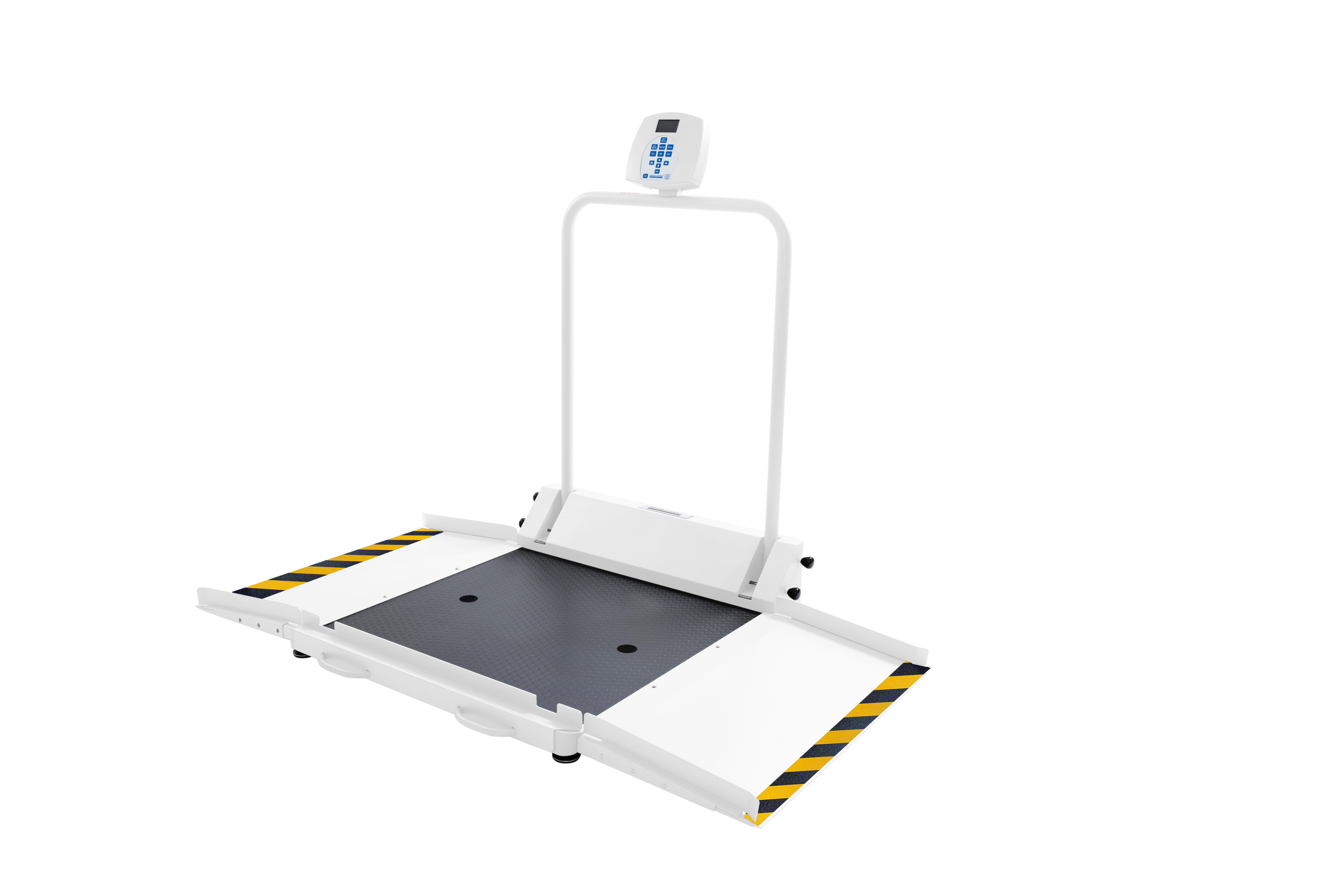

The all-digital 2620KL is engineered with enhanced safety features to ensure a comfortable weighing experience for patients who use wheelchairs. Following Americans with Disabilities Act (ADA) compliance, the dual ramps adhere to a 1:8 slope ratio. The ramps and extra-large 32” x 40” platform feature a 2” edge protection to prevent roll-offs, and anti-slip caution tape on the ramps provide enhanced safety. The platform folds for storage, and built-in casters are included for added convenience and mobility. The scale has a weight capacity of up to 1,000 pounds (454 kilograms). Designed to meet U.S. Access Board Standards, the 2620KL is ideal for doctor’s offices, hospitals, clinics, and acute or long-term care facilities. Additional features include an antimicrobial keypad, a swiveling display head with 180° rotation, and a large non-skid platform.
2620KL Wheelchair Scale, Designed to Meet the US Access Boards Standards: Medical facilities operated by state and local governments, also known as public entities, must comply with the MDE Standards for Accessible Medical Diagnostic Equipment, which is enforced by the Department of Justice.
• 32” wide x 40” deep platform

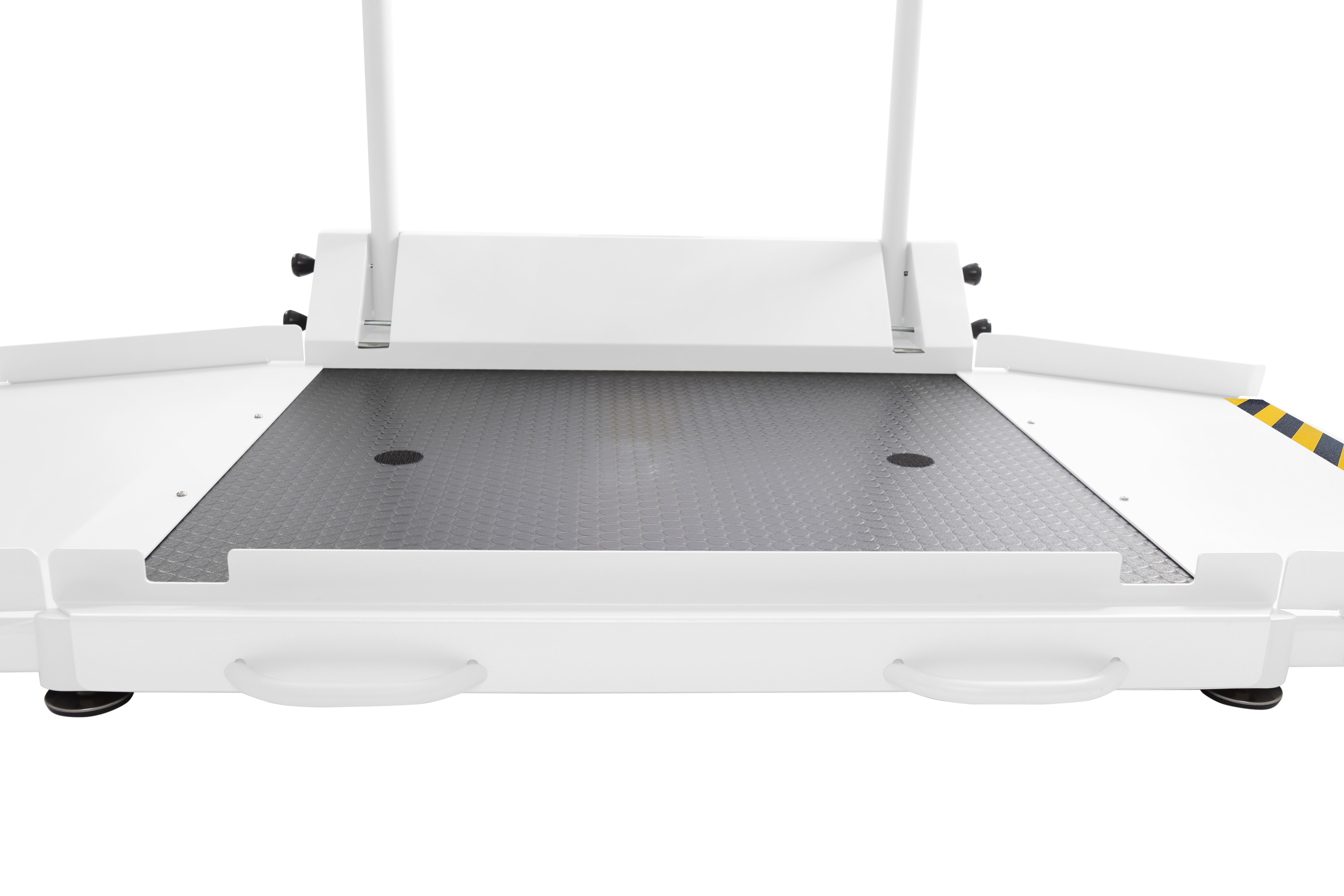

• 2” edge protection on platform
• 2” edge protection on ramps
• 1:8 running slope
LB/KG conversion
LB/KG lock out
BMI
Zero
Tare
Pre-tare
Hold/release
Reweigh
Recall
Auto zero
Auto off
Time/date
Variable auto off time
Audible/mute sound option
Parent/child weighing function
Everlock®
1000 lb / 454 kg
0.2 lb / 0.1 kg
Via USB, optional Pelstar® wireless technology
Digit Size: 3/8” / 10 mm
Screen Size: 2 ¾” x 1 ½” High-Contrast
Color TFT-LCD Screen
100-240V adapter (ADPT30)
included, 6 D batteries not included
40” x 32 ¼” x 1 ⅞”
(1016 mm x 819 mm x 48 mm)
32 1/4” x 16”
(819 mm x 406 mm)
40” x ⅛” x 2”
(1016 mm x 3 mm x 51 mm)
77 1/4” x 43 ⅞” x 48 ¾”
(1962 mm x 1114 mm x 1238 mm)
126 lb / 57 kg
4 wheels (2 casters)
for ease of movement
2-year limited manufacturer warranty
