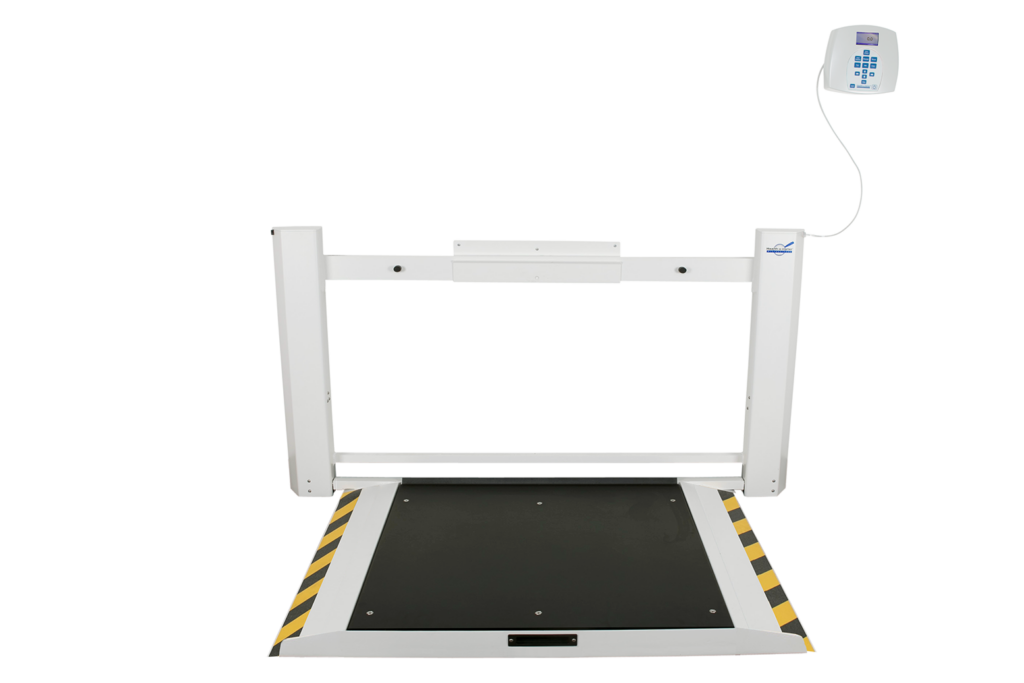

Antimicrobial Wall-Mounted Fold-Up Wheelchair Scale, ADA Compliant

As North America’s leading medical scale manufacturer, we proudly offer an Americans with Disabilities Act (ADA) compliant, antimicrobial, wall-mounted wheelchair scale designed for optimal performance in demanding healthcare environments. Engineered to support up to 1,000 pounds (454 kilograms), this scale combines exceptional durability, reliability, and user-friendly operation.

Reviewed for
ADA compliance and
Platinum certified by Corada

Download Certificate

• Wall-mounted with foldable platform
• Extends only 4. 7 inches from the wall when folded
• Display can be mounted on either side for flexibility
• Ideal for hospitals, clinics, acute, long-term care, and doctors’ offices

• Spacious and easy to lift
• Fits most wheelchairs for safe, comfortable weighing

• Antimicrobial surface protection
• Raised platform edge
• Recessed handle
• No-pinch-point design

Medical facilities operated by state and local governments, also known as public entities, must comply with the MDE Standards for Accessible Medical Diagnostic Equipment, which are enforced by the Department of Justice.

• 32” wide x 40” deep platform
• 2” edge protection on platform
• 2” edge protection on ramps
• 1:8 running slope

Corada Product Certification indicates that the product is Platinum certified by Corada and meets applicable ADA Standards when installed, maintained, and operated correctly.

• LB/KG conversion
• LB/KG lock out
• BMI
• Zero
• Tare
• Pre-tare
• Hold/release
• Reweigh
• Recall
• Auto zero
• Auto off
• Time/date
• Variable auto off time
• Audible/mute sound option
• Parent/child weighing function
• Everlock® – permanent unit lock

1000 lb / 454 kg

0.2 lb / 0.1 kg

Via USB, optional Pelstar® wireless technology

Digit Size: 3/8” / 10 mm
Screen Size: 2 ¾” x 1 ½” High-Contrast
Color TFT-LCD Screen

100-240V adapter (ADPT30)
included, 6 D batteries not included

40” x 32” x 1 ₃⁄₅”
(1016 mm x 819 mm x 38 mm)

12 ¼” x 32”
(318 mm x 813 mm)

77 ½” x 37 7/8” x 37”
(1968 mm x 962 mm x 940 mm)

77 ½” x 4 ¾” x 37”
(1968 mm x 114 mm x 940 mm)

118 lb / 53.5 kg

2-year limited manufacturer warranty
